DESCRIPTION

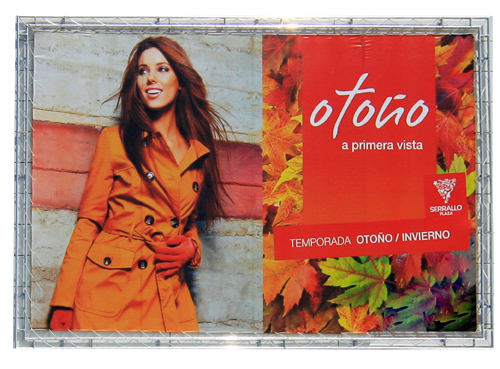

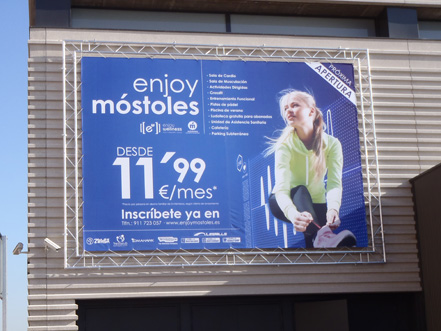

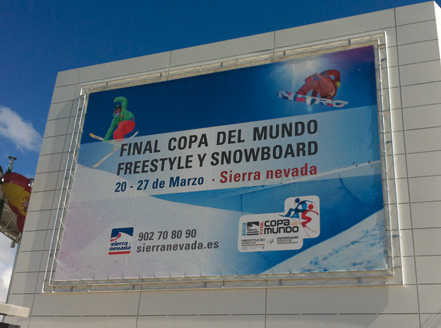

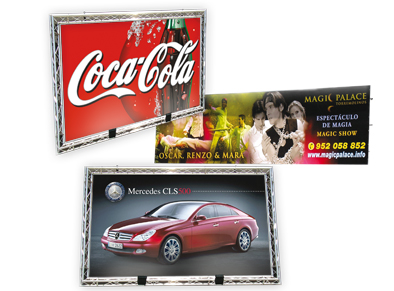

The aluminium frames for canvas, also known as TRUSS, are aluminium made of 2, 3 or 4 main tubes interconnected and resulting in a structure of high resistance and strength.

All trusses can be used with different materials such as textiles, plastics, etc. and they are habitually used as:

– Stand manufacturing
– Medium and Big Format Canvas Support
– Walls
– Stages, etc.

TECHNICAL SPECIFICATIONS FOR FRAMES

Material: Aluminium
Width of columns: 29 x 40 cm
Beams length: 1, 2, 3 or 4 mt
Diameter of main tubes: 30, 40 and 50 mm
Diameter of secundary tubes: 10, 12 and 15 mm

TECHNICAL SPECIFICATIONS FOR CANVAS

Material Quality: High Tenacity Polyester coated with PVC
Canvas type: PVC Frontlit coated, printed on 1 side
Thickness: 0,45 mm
Total weight: 500 gr + – 40 gr
Breaking Load: Longitudinal: 250 N. Transversal: 140 N
Elongation at fracture: Longitudinal: 200N / Transversal: 23N
Tear Resistance: Longitudinal: 15N / Transversal: 15N
Colour fastness: M2, B1
Flammability: Min 6
Inks: Solvent

Some of our items and as an addition, this product can be installed with 2 cranks at the bottom corners in order to perform the change of the graphics without the need of mechanical means.

IBERTI frames comply with the following conditions:

– Product liability insurance.
– Installation liability insurance.
